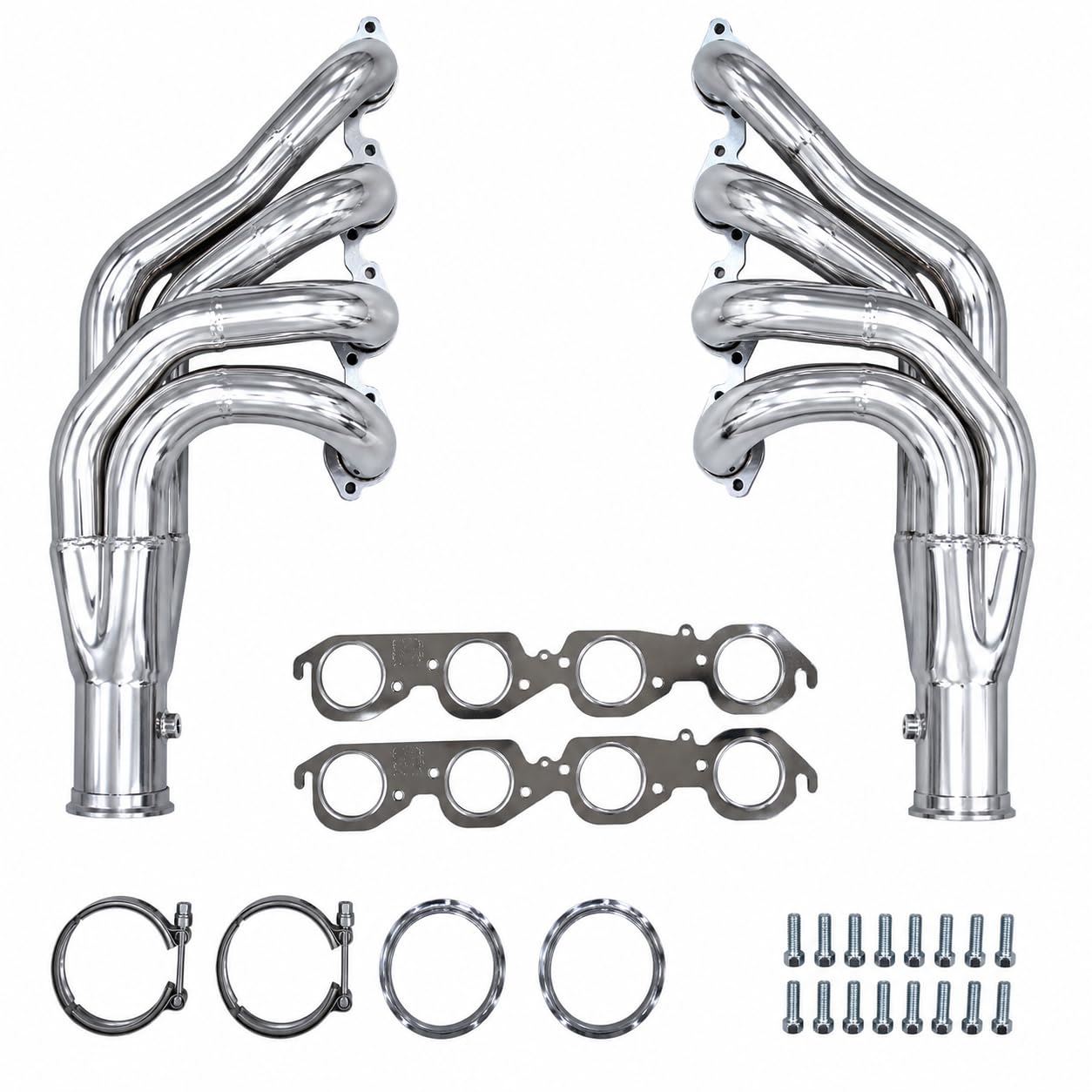

Ceramic Coated BBC Turbo Headers | 2.25" Primary | 3.5" V-Band | Forward Facing | Big Block Chevy

The CAE-045-C Ceramic Coated BBC Turbo Headers are built for custom Big Block Chevy (BBC) turbocharger projects that demand maximum durability, efficient exhaust flow, and a compact forward-facing design. Engineered for 396, 402, 427, 454, 496, 502, and 572 Big Block Chevy engines, these headers provide an ideal foundation for custom turbo fabrication, engine swaps, race builds, and high-performance street applications.

Constructed from precision mandrel-bent tubing, each header features 2.25-inch primary tubes that merge into oversized 3.5-inch V-band collectors, positioning the outlets up and forward for simplified turbocharger placement and custom exhaust routing. This forward-facing configuration helps maximize available engine bay space, making it well suited for applications where traditional rear-exit headers create clearance challenges.

Every header is assembled using TIG-welded joints and CNC-machined 5/16-inch thick flanges to provide excellent sealing, structural strength, and long-term reliability under repeated heat cycles. The heavy-duty flange design helps minimize warping while maintaining a secure connection between the cylinder head and header.

A durable silver semi-gloss ceramic coating provides more than an attractive finish. It helps reduce radiant heat within the engine compartment, improves corrosion resistance, and maintains a cleaner appearance compared to bare or polished stainless steel, which often discolors after prolonged exposure to high exhaust temperatures. The ceramic finish also contributes to improved thermal management in demanding turbocharged environments.

Each kit includes:

• Left and right ceramic-coated forward-facing turbo headers

• 3.5-inch V-band collector flanges

• V-band clamps

• Exhaust gaskets

• Installation hardware

These headers are intended for custom fabrication and should be installed only after verifying engine bay dimensions, chassis clearance, steering components, suspension, turbocharger placement, and surrounding accessories. Fitment may vary depending on the vehicle, engine combination, and fabrication requirements.

Applications

The CAE-045-C headers are ideal for:

• Big Block Chevy twin-turbo and single-turbo builds

• Custom turbo fabrication projects

• Vintage muscle cars

• Pro Touring builds

• Engine swaps

• Fabricated chassis and race cars

• High-performance street builds

• Custom off-road and specialty vehicle projects

• Non-automotive applications utilizing Big Block Chevrolet engines

Compatible BBC Engine Sizes

396 • 402 • 427 • 454 • 496 • 502 • 572 Cubic Inch

Designed primarily for custom fabrication projects, these headers are commonly used on 1967 and earlier vehicles, race applications, and other builds where installer verification of fitment and clearance is required before installation.
