W4P LS Swap Low-Profile Oil Pan Kit, Polished Aluminum
Make room for your LS engine swap with the W4P Low-Profile LS Swap Oil Pan Kit, designed to provide clearance around frame crossmembers in many vehicles where a factory oil pan may not fit. Featuring a polished aluminum finish, this oil pan has dimensions similar to the Holley 302-1 oil pan.

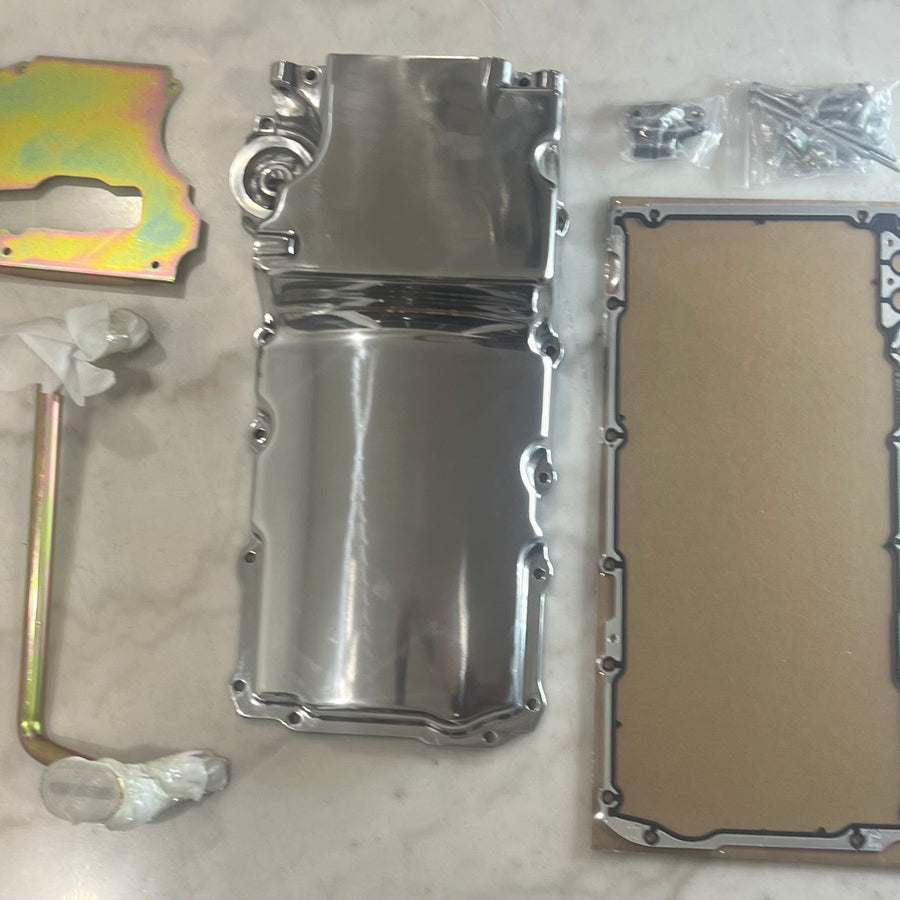

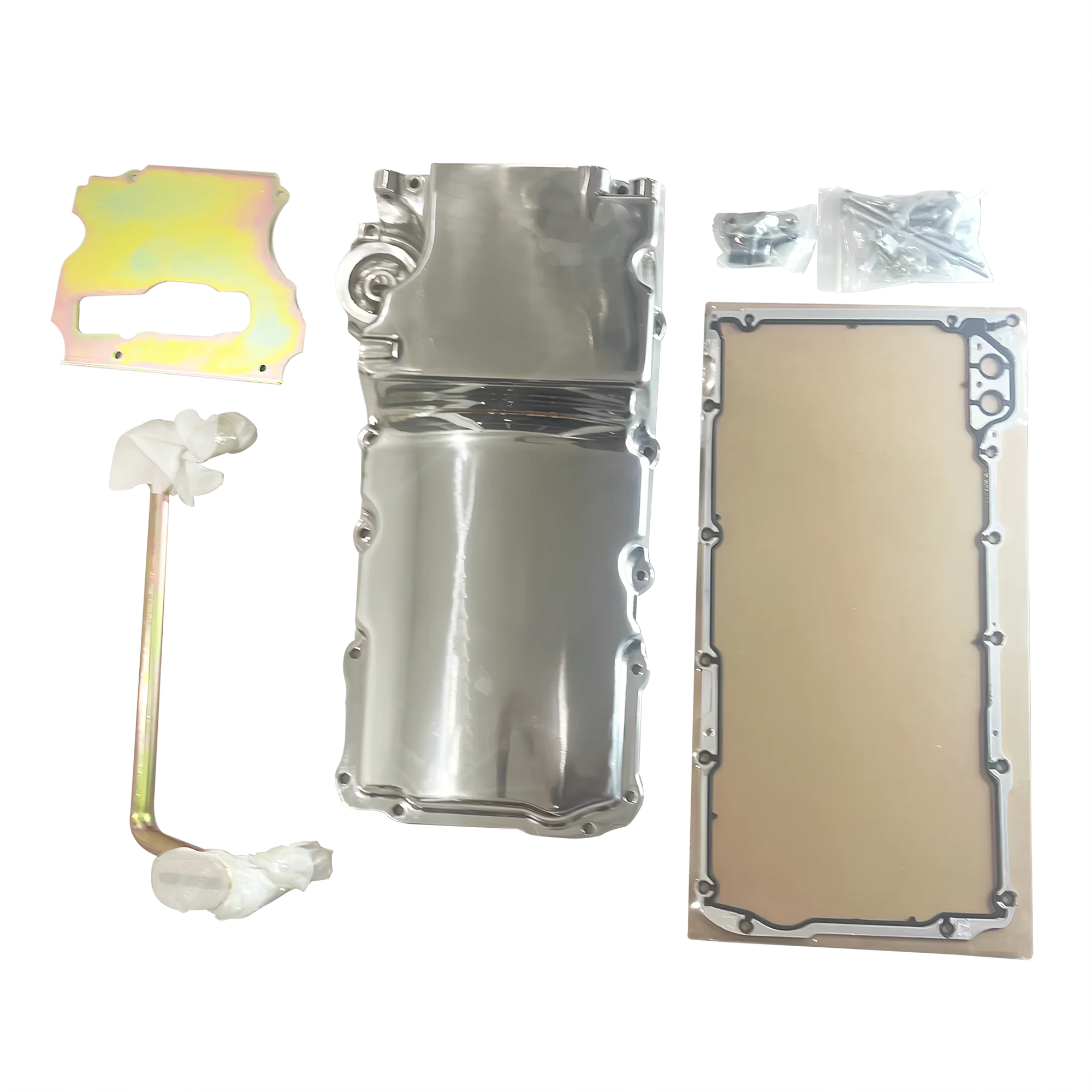

Designed for 4.8L, 5.3L, 6.0L, and 6.2L LS-style engines, this kit includes the oil pan and essential installation components, including the gasket, pickup tube, pickup tube O-ring, baffle, drain plug, oil filter stud, and mounting bolts.
Key Features
- Low-Profile Design: Intended to help clear frame crossmembers in many LS swap applications.
- Polished Aluminum Finish: Provides a polished appearance.
- LS Engine Compatibility: Fits 4.8L, 5.3L, 6.0L, and 6.2L LS-style engines.
- Holley 302-1 Similar Dimensions: Designed with dimensions similar to the Holley 302-1 oil pan.
- Complete Kit: Includes the oil pan, gasket, pickup tube, O-ring, baffle, drain plug, oil filter stud, and bolts.
Product Specifications
| Specification | Details |
|---|---|
| Part Number | W4P |
| Product Type | LS Swap Oil Pan Kit |
| Material | Aluminum |
| Finish | Polished |
| Design | Low-profile |
| Compatible Engine Sizes | 4.8L, 5.3L, 6.0L, 6.2L LS-style |
| Reference Design | Similar dimensions to Holley 302-1 |
| Rear of Sump Depth | 5¼ inches |
| Front of Sump Depth | 5¾ inches |
| Shallow Section Depth at Front | 2¼ inches |
| Shallow Section Depth at Rear | 3¼ inches |
| Distance from Rear to Front of Sump | 7½ inches |
Package Includes
| Component | Quantity |
|---|---|
| Polished Aluminum Oil Pan | 1 |
| Oil Pan Gasket | 1 |
| Oil Pickup Tube | 1 |
| Pickup Tube O-Ring | 1 |
| Baffle | 1 |
| Drain Plug | 1 |
| Oil Filter Stud | 1 |
| Bolts | Included |
Frequently Asked Questions
| Question | Answer |
|---|---|
| Which engines does this oil pan fit? | It is listed for 4.8L, 5.3L, 6.0L, and 6.2L LS-style engines. |
| What is the benefit of the low-profile design? | It is designed to help provide frame crossmember clearance in many vehicles where a factory oil pan may not fit. |
| What is the finish? | The oil pan has a polished aluminum finish. |
| Is this similar to the Holley 302-1 oil pan? | Yes. The supplied product information describes its dimensions as similar to the Holley 302-1. |
| What comes with the kit? | The kit includes the oil pan, gasket, pickup tube, pickup tube O-ring, baffle, drain plug, oil filter stud, and bolts. |
| Will it fit every LS swap vehicle? | Not necessarily. Clearance depends on the vehicle and installation configuration. Confirm the pan dimensions and required clearances before ordering. |
Fitment Note: This kit is intended for compatible LS-style engines. Vehicle-specific fitment and additional clearance dimensions are not provided, so verify crossmember clearance and installation compatibility before purchase.
