Low Profile LS Swap Oil Pan Kit, Satin Finish
LS Swap Oil Pan Kit. This is a low profile design to clear the frame crossmembers on most vehicles when a factory pan won’t clear. Satin Finish
Comparable in dimensions to the 302-1 oil pan.
Rear of sump is 5 1/4” deep
Front of sump is 5 3/4” deep
Front (shallow) end is 2 1/4” deep at the front 3 1/4” deep at the rear.
The distance from the rear of the sump to the front of the sump is 7 1/2 inches.
Fits 4.8L 5.3L 6.0L 6.2L LS Style engines.

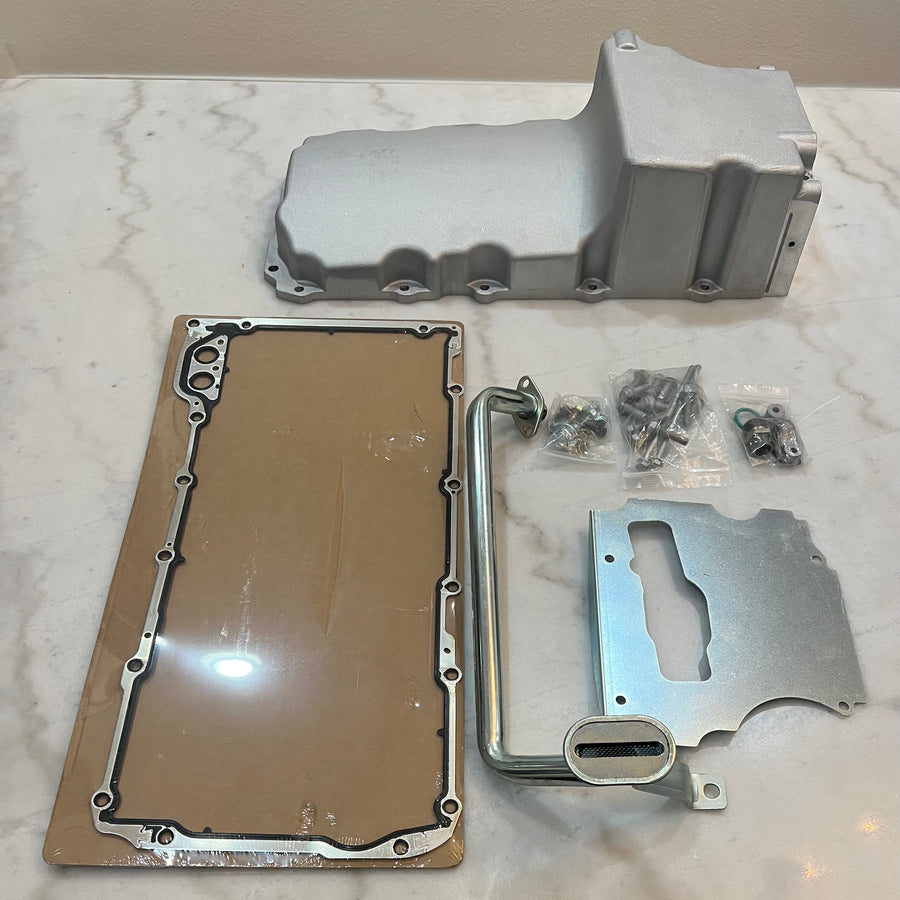

Kit Includes:
Oil pan, satin finish aluminum
Oil Pan Gasket
Oil Pickup Tube
Pickup tube o-ring
Baffle
Drain Plug
Oil Filter Stud
All bolts
$85.00
